Tutorial (custom model)

You can define custom models to be tested in the state learner library. In this notebook, this is demonstrated with a DeepSurv neural network model.

import numpy as np
import pandas as pd
from pytmle import PyTMLE

target_times = [5.0, 10.0, 15.0, 20.0, 25.0]
np.random.seed(42)

Load the Hodgkin’s Disease dataset.

df = pd.read_csv("hodgkins_disease.csv")

Define a custom model (exemplified by a model based on DeepSurv) to be cross-fitted in the .fit method.

# imports needed for pycox
import torchtuples as tt
from pycox.models import CoxPH

in_features = 7 # age, female, extranod, stage2, medwidsi_S, medwidsi_N, chemo
num_nodes = [32, 32]
out_features = 1
batch_norm = True
dropout = 0.1
output_bias = False

net = tt.practical.MLPVanilla(in_features, num_nodes, out_features, batch_norm,
                              dropout, output_bias=output_bias)


model = CoxPH(net, tt.optim.Adam)

Instantiate the PyTMLE class and fit it with both the DeepSurv model and a RandomSurvivalForest in the library of the state learner, and a support vector machine classifier + random forest in the library of the stacking classifier for propensity scores.

from sksurv.ensemble import RandomSurvivalForest
from sklearn.svm import SVC
from sklearn.ensemble import RandomForestClassifier

tmle = PyTMLE(df,
              col_event_times="time",
              col_event_indicator="status",
              col_group="chemo",
              target_times=target_times,
              g_comp=True,
              verbose=3,)

tmle.fit(cv_folds=5,
         max_updates=100,
         save_models=True,
         models=[model, RandomSurvivalForest()],
         propensity_score_models=[SVC(), RandomForestClassifier()],
         labtrans=None)

Estimating propensity scores...
Estimating hazards and event-free survival...
Estimating censoring survival...
(CoxPH | CoxPH): 3.039067494120523
(CoxPH | RandomSurvivalForest): 3.0488997726124407
(RandomSurvivalForest | CoxPH): 3.2878747147243326
(RandomSurvivalForest | RandomSurvivalForest): 3.267161259846405
Starting TMLE update loop...
Step 1: Norm PnEIC improved to 0.02552972784702802.
Step 2: Norm PnEIC improved to 0.01879889731053828.
Step 3: Norm PnEIC improved to 0.013366134071044776.
Step 4: Norm PnEIC improved to 0.012506568462887686.
Step 5: Norm PnEIC improved to 0.011800513341399812.
Step 6: Norm PnEIC improved to 0.011189614114653643.
Step 7: Norm PnEIC improved to 0.01065846380412103.
Step 8: Norm PnEIC improved to 0.010202372383367327.
Step 9: Norm PnEIC improved to 0.009824646524712764.
Step 10: Norm PnEIC improved to 0.00954416156014202.
Step 11: Norm PnEIC improved to 0.009406644125445627.
Step 12: Norm PnEIC improved to 0.008857826295995429.
Step 13: Norm PnEIC improved to 0.008695787777146047.
Step 14: Norm PnEIC improved to 0.008553978805939081.
Step 15: Norm PnEIC improved to 0.008419328831486756.
Step 16: Norm PnEIC improved to 0.0082904473347252.
Step 17: Norm PnEIC improved to 0.008166783516545822.
Step 18: Norm PnEIC improved to 0.008047894515103305.
Step 19: Norm PnEIC improved to 0.007933384318140045.
Step 20: Norm PnEIC improved to 0.007822895653610199.
Step 21: Norm PnEIC improved to 0.007716106194492411.
Step 22: Norm PnEIC improved to 0.007612725315303317.
Step 23: Norm PnEIC improved to 0.007512490898060883.
Step 24: Norm PnEIC improved to 0.0074151663180456314.
Step 25: Norm PnEIC improved to 0.007320537615986524.
Step 26: Norm PnEIC improved to 0.007228410915022249.
Step 27: Norm PnEIC improved to 0.007138610087925415.
Step 28: Norm PnEIC improved to 0.00705097468448443.
Step 29: Norm PnEIC improved to 0.00696535810888335.
Step 30: Norm PnEIC improved to 0.006881626035099635.
Step 31: Norm PnEIC improved to 0.006799655040726316.
Step 32: Norm PnEIC improved to 0.006719331438764763.
Step 33: Norm PnEIC improved to 0.006640550284849012.
Step 34: Norm PnEIC improved to 0.00656321453807256.
Step 35: Norm PnEIC improved to 0.00648723435407574.
Step 36: Norm PnEIC improved to 0.006412526490721732.
Step 37: Norm PnEIC improved to 0.006339013808254429.
Step 38: Norm PnEIC improved to 0.006266624847842752.
Step 39: Norm PnEIC improved to 0.006195293474267316.
Step 40: Norm PnEIC improved to 0.006124958570450705.
Step 41: Norm PnEIC improved to 0.006055563773274096.
Step 42: Norm PnEIC improved to 0.005987057241792404.
Step 43: Norm PnEIC improved to 0.00591939145041587.
Step 44: Norm PnEIC improved to 0.005852523000953846.
Step 45: Norm PnEIC improved to 0.005786412448541076.
Step 46: Norm PnEIC improved to 0.00572102413745785.
Step 47: Norm PnEIC improved to 0.005656326043677415.
Step 48: Norm PnEIC improved to 0.005592289621675556.
Step 49: Norm PnEIC improved to 0.005528889653607046.
Step 50: Norm PnEIC improved to 0.005466104099432896.
Step 51: Norm PnEIC improved to 0.005403913946957157.
Step 52: Norm PnEIC improved to 0.005342303061049861.
Step 53: Norm PnEIC improved to 0.005281258031571782.
Step 54: Norm PnEIC improved to 0.0052207680197234735.
TMLE converged at step 54.

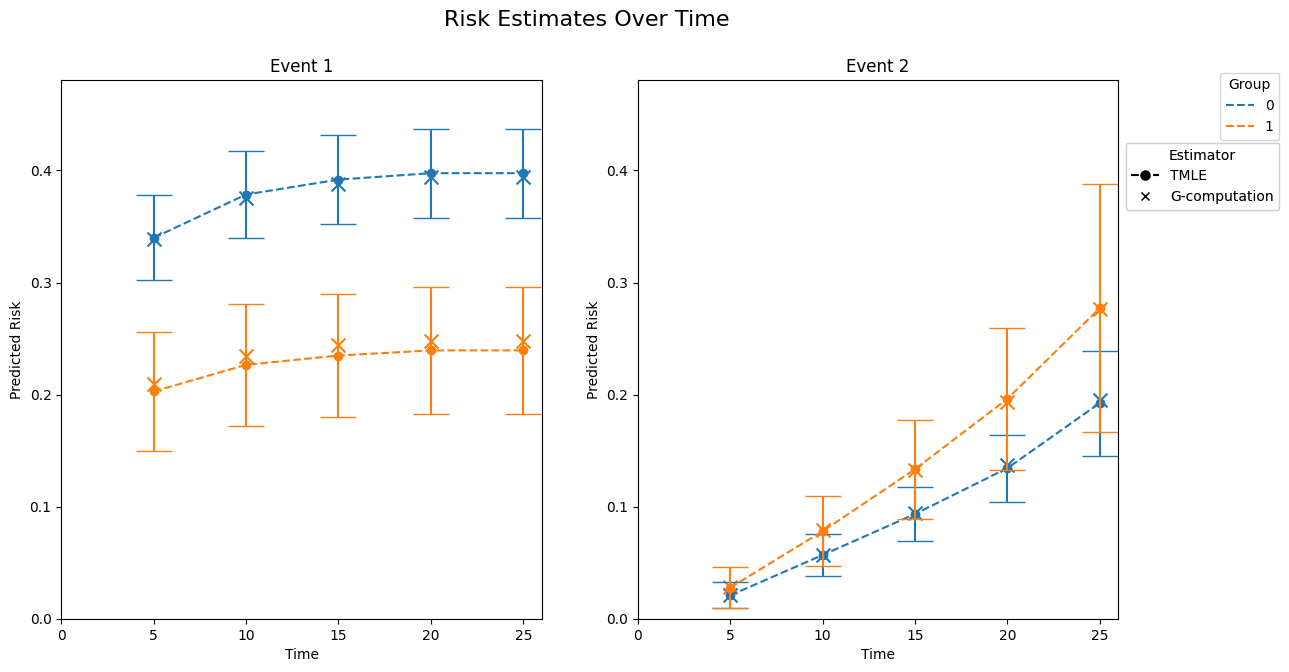

tmle.plot(g_comp=True, use_bootstrap=False)

(<Figure size 1400x700 with 2 Axes>,
 array([<Axes: title={'center': 'Event 1'}, xlabel='Time', ylabel='Predicted Risk'>,
        <Axes: title={'center': 'Event 2'}, xlabel='Time', ylabel='Predicted Risk'>],
       dtype=object))

Since save_models was set to True in the fit() call, you can extract the models used for initial estimates and analyze them further. Note that all cross-fitted models are of type PycoxWrapper and only return the name of the wrapped class.

print(tmle.models)
print(tmle.state_learner_cv_fit)

{'propensity_model': StackingClassifier(cv=5,
                   estimators=[('0', SVC()), ('1', RandomForestClassifier())],
                   final_estimator=LogisticRegression(max_iter=1000)), 'risks_model_fold_0': CauseSpecificCoxPH, 'censoring_model_fold_0': CoxPH, 'risks_model_fold_1': CauseSpecificCoxPH, 'censoring_model_fold_1': CoxPH, 'risks_model_fold_2': CauseSpecificCoxPH, 'censoring_model_fold_2': CoxPH, 'risks_model_fold_3': CauseSpecificCoxPH, 'censoring_model_fold_3': CoxPH, 'risks_model_fold_4': CauseSpecificCoxPH, 'censoring_model_fold_4': CoxPH}
            risks_model       censoring_model      loss
0                 CoxPH                 CoxPH  3.039067
1                 CoxPH  RandomSurvivalForest  3.048900
3  RandomSurvivalForest  RandomSurvivalForest  3.267161
2  RandomSurvivalForest                 CoxPH  3.287875

You can see that the DeepSurv model was chosen for both risks and censoring.
